Custom IP67 Die Cast Aluminum Enclosures Rugged Weatherproof Precision Engineered

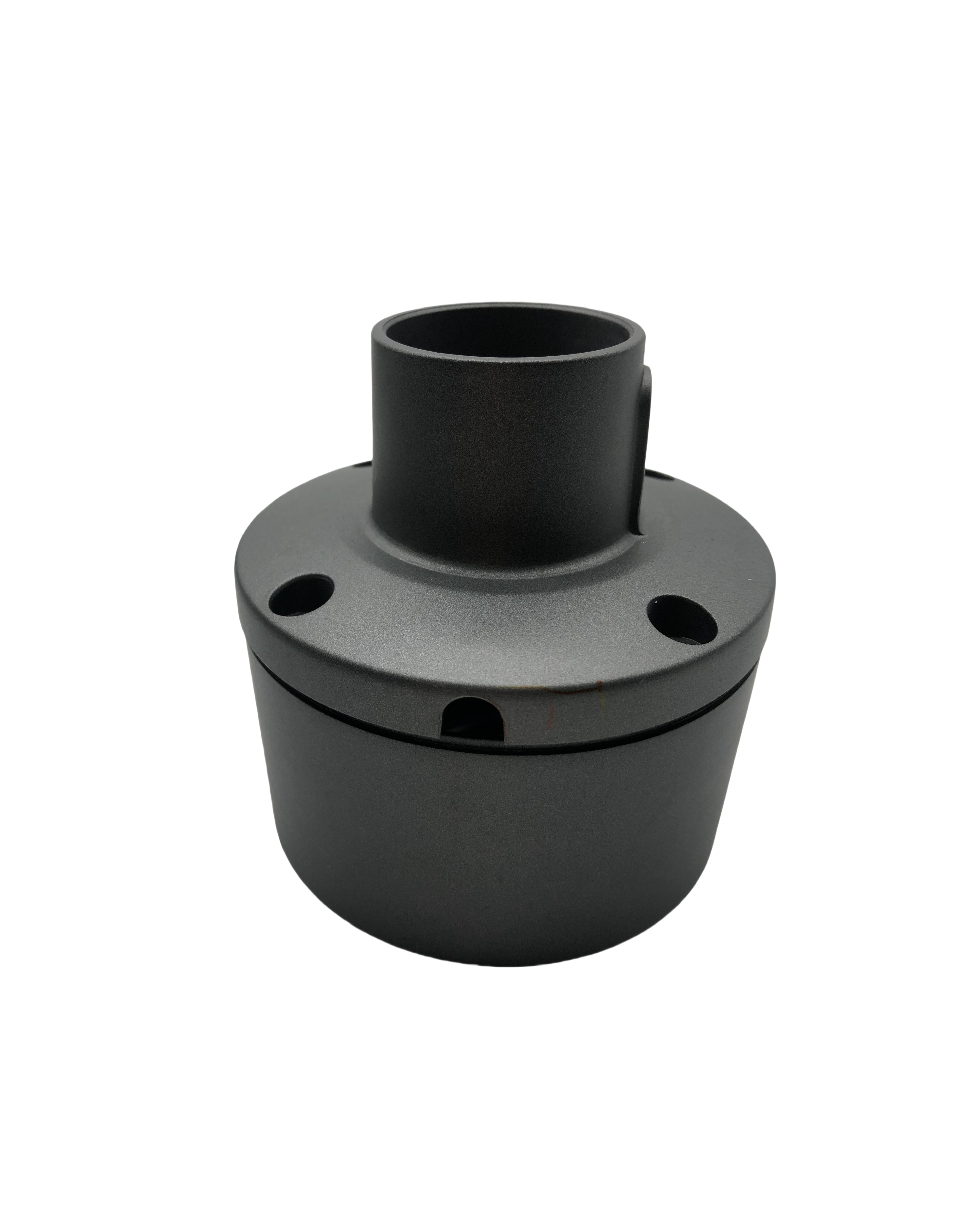

Our OEM IP67 Die-Cast Aluminum Enclosures are engineered to protect sensitive electronics in the harshest environments. Made from rugged ADC12 aluminum alloy and sealed with silicone gaskets, these housings provide complete dust-tight and water-immersion protection (up to 1 m) for up to 30 minutes. Each enclosure can be tailored to your exact CAD drawings or 3D models, ensuring perfect fit-and-function for applications ranging from outdoor CCTV cameras and LED drivers to telecom junction boxes and industrial control panels.

• Robust Environmental Protection With an IP67 rating and silicone-to-metal gasket, these enclosures safeguard electronics against dust, rain, and temporary submersion—ideal for outdoor and marine applications.
• High-Strength Alloy ADC12 aluminum offers excellent mechanical strength and corrosion resistance, ensuring long service life even under impact or vibration.
• Precision Machining & Sealing CNC-machined flanges and gasket grooves deliver consistent sealing performance; tolerances down to ±0.05 mm ensure reliable assembly and minimal rework.
• Thermal Management Built-in heat-sink fins (optional) and high-conductivity aluminum dissipate heat efficiently for high-power electronics.
• Full Customization From bespoke cutouts and threaded inserts to internal mounting rails and paint colors, tailor every detail to your project needs.
• Cost-Effective Production High-pressure die casting molds amortize quickly over medium-to-large volumes, driving down unit costs without compromising quality.

• Smart Enclosures with Integrated Sensors: Embedding temperature, humidity or tamper sensors directly into the housing for predictive maintenance and real-time monitoring.
• Hybrid Materials & Additive Manufacturing: Combining die-casting with metal 3D-printed inserts for complex internal geometries and weight reduction.
• Eco-Friendly Finishes: Water-based coatings and recycled-content alloys to meet evolving sustainability standards.
• Modular, Snap-Together Designs: Tool-free assembly options to speed up field servicing and reduce downtime.
• IIoT-Ready Features: Pre-routed cable channels and backplane slots for plug-and-play connectivity in automated systems.

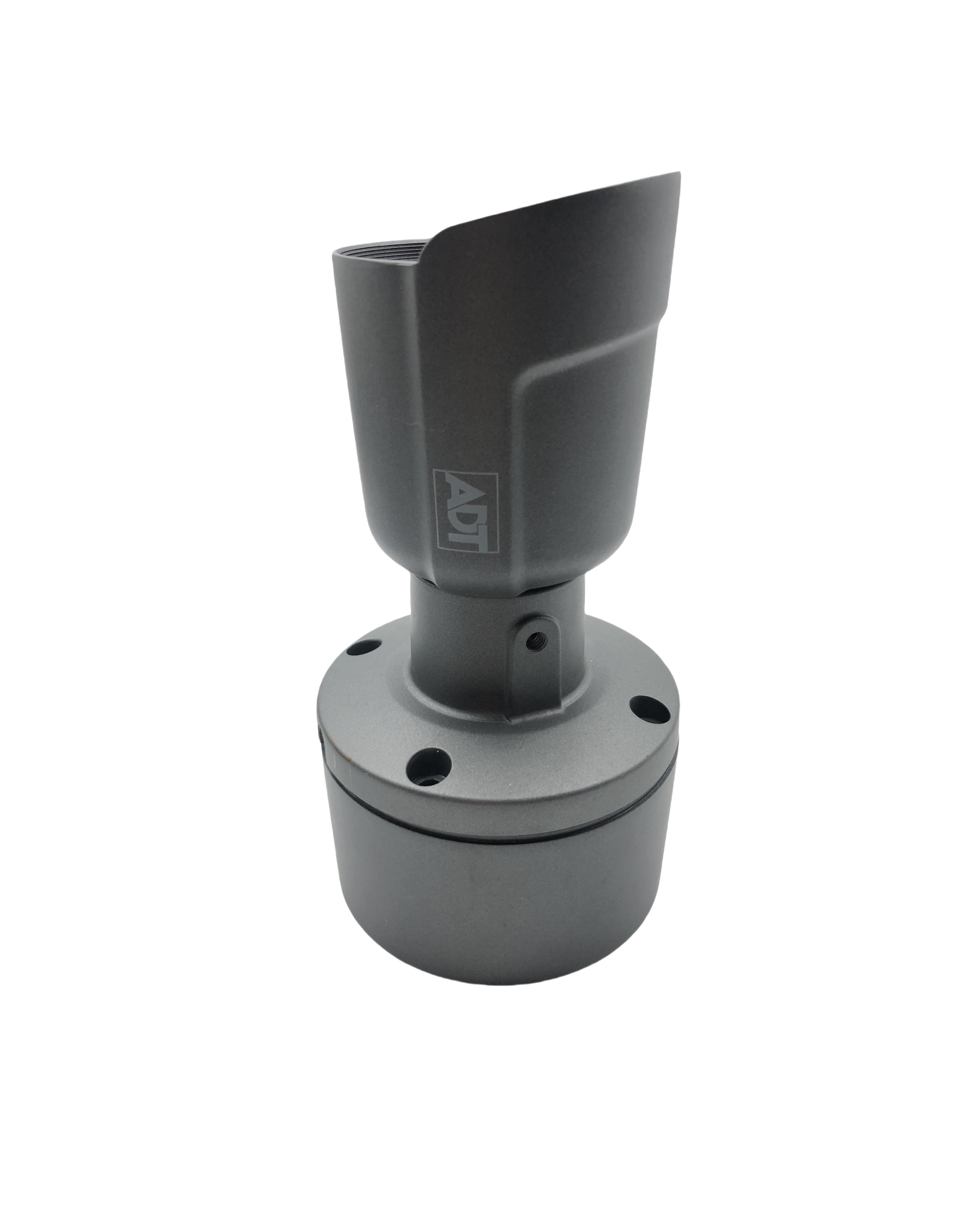

• Outdoor CCTV & Surveillance Cameras: Weatherproof housings with lens and cable-entry cutouts for reliable security installations.
• LED Lighting & Street Lamps: Enclosures with integrated heat-sink fins to manage thermal loads in high-brightness fixtures.
• Telecom & Networking Cabinets: Junction boxes and splitter enclosures for fiber-optic and coaxial equipment.
• Industrial Control Panels: Die-cast cases for PLCs, drives, and sensors in dust- and wash-down environments.
• Marine & Offshore Equipment: Corrosion-resistant housings for pumps, gauges and marine electronics.
